Apple TV 4K - Technical Specifications

Size and Weight
93 mm (3.66 inches) 93 mm (3.66 inches) 31 mm (1.2 inches)

Height: 31 mm (1.2 inches)

Width: 93 mm (3.66 inches)

Depth: 93 mm (3.66 inches)

Weight (Wi-Fi model): 208 grams 7.3 ounces1

Weight (Wi-Fi + Ethernet model):
214 grams 7.5 ounces
1

35 mm (1.4 inches) 136 mm (5.4 inches)

Height: 136 mm (5.4 inches)

Width: 35 mm (1.4 inches)

Depth: 9.25 mm (0.36 inch)

Weight: 66 grams 2.3 ounces1

Capacity2

64GB (Wi-Fi model)

128GB (Wi-Fi + Ethernet model)

Connectivity
Built-in power supply HDMI
Wi-Fi model

HDMI 2.13

Wi‑Fi 6 (802.11ax) with 2x2 MIMO

Bluetooth® 5.0 wireless technology

IR receiver

Built-in power supply

Built-in power supply Gigabit Ethernet HDMI
Wi-Fi + Ethernet model

HDMI 2.13

Wi‑Fi 6 (802.11ax) with 2x2 MIMO

Bluetooth® 5.0 wireless technology

IR receiver

Built-in power supply

Thread networking technology4

Gigabit Ethernet

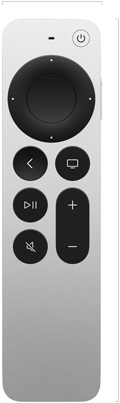

Siri Remote

Bluetooth® 5.0 wireless technology

IR transmitter

USB-C connector for charging

Rechargeable battery providing months of battery life on a single charge (with typical daily usage)

Charging via USB-C to a computer system or power adapter (sold separately)

Control your TV or receiver via IR or CEC5

Microphone for Siri

Touch-enabled clickpad

Back

Play/Pause

Mute

Power

Siri

TV/Home

Volume

USB-C

Processor

A15 Bionic chip

System Requirements

All models

Purchases, rentals and Home Sharing require an Apple ID that you use for the App Store and other Apple services

Requires 4K and HDR TV for 4K and HDR streaming

Requires acceptance of the software licence terms at apple.com/nz/legal/sla

Requires an HDMI cable (sold separately)

Wi-Fi model

Requires 802.11 wireless or broadband internet access

Wi-Fi + Ethernet model

Requires 802.11 wireless, Ethernet network or broadband internet access

Video Formats

SDR video with AVC/HEVC (Main/Main 10 profile) up to 2160p, 60 fps

Dolby Vision (Profile 5) up to 2160p, 60 fps

HDR10+/HDR10/HLG with HEVC (Main 10 Profile) up to 2160p, 60 fps

H.264 Baseline Profile level 3.0 or lower with AAC-LC audio up to 160 Kbps per channel, 48kHz, stereo audio in .m4v, .mp4 and .mov file formats

MPEG-4 video up to 2.5 Mbps, 640 by 480 pixels, 30 fps, Simple profile with AAC-LC audio up to 160 Kbps, 48kHz, stereo audio in .m4v, .mp4 and .mov file formats

Audio Formats

HE-AAC (V1), AAC (up to 320 Kbps), protected AAC (from iTunes Store), MP3 (up to 320 Kbps), MP3 VBR, Apple Lossless, FLAC, AIFF and WAV; AC-3 (Dolby Digital 5.1), E-AC-3 (Dolby Digital Plus 7.1 surround sound) and Dolby Atmos

Photo Formats

HEIF, JPEG, GIF, TIFF

Compatibility

Compatible with HD and UHD TVs with HDMI3

Compatible with Bluetooth keyboards6

Accessibility

Accessibility features help people with disabilities get the most out of their Apple TV. With built-in support for vision, hearing, mobility and learning, you can easily find and enjoy your favourite entertainment.
Learn more

Features include:

  • VoiceOver
  • Zoom
  • Hover Text
  • Increase Contrast
  • Reduce Motion
  • Closed Caption and SDH Support
  • Audio Descriptions
  • Siri and Dictation
  • Type to Siri
  • Switch Control
Electrical and Environmental Requirements

Line voltage: 100V to 240V AC

Frequency: 50Hz to 60Hz

Operating temperature: 0° to 35° C (32° to 95° F)

Storage temperature: -20° to 45° C (-4° to 113° F)

Relative humidity: 5% to 95% noncondensing

Operating altitude: tested up to 3,000 metres (10,000 feet)

In the Box

Apple TV 4K

Siri Remote

Power cord

Documentation

Apple TV and the Environment

Apple TV 4K with Siri Remote is designed with the following features to reduce its environmental impact.7

See the Apple TV 4K Product Environmental Report (PDF)

Apple TV 4K with Siri Remote is designed with the following features to reduce its environmental impact.7

See the Apple TV 4K Product Environmental Report (PDF)

Made with better materials

  • 80 per cent recycled aluminium in the Apple TV 4K thermal module
  • 100 per cent recycled aluminium in the Siri Remote enclosure
  • 100 per cent recycled gold in the plating of multiple printed circuit boards
  • 100 per cent recycled tin in the solder of multiple printed circuit boards
  • 35 per cent or more recycled plastic in multiple components

Smarter chemistry8

  • Mercury-, BFR-, PVC- and beryllium-free

Green manufacturing

  • Apple’s Zero Waste Program helps suppliers eliminate waste sent to landfill
  • All final assembly supplier sites are transitioning to 100 per cent renewable energy for Apple production

Responsible packaging

  • 100 per cent of virgin wood fibre comes from responsibly managed forests
  • 90 per cent or more fibre‑based packaging and no outer plastic wrapping

Apple and the Environment

We’re committed to making our products without taking from the earth, and to becoming carbon-neutral across our entire business, including our products, by 2030.

See Apple’s commitment
