Apple Watch Series 10 Technical Specifications

Material and Finish

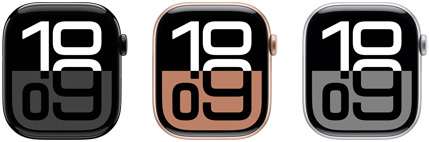

Aluminium case

Jet Black, Rose Gold, Silver

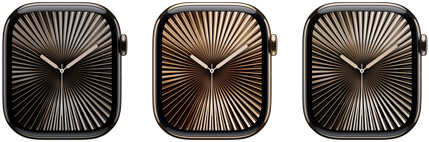

Titanium case

Slate, Gold, Natural

Size and Weight
  • Height: 46 mm
  • Width: 39 mm
  • Depth: 9.7 mm
  • 416 by 496 pixels
  • 1,220-sq-mm display area
  • Weight (aluminium, GPS): 36.4 grams
  • Weight (aluminium, GPS) + Cellular: 35.3 grams
  • Weight (titanium): 41.7 grams
  • Fits 140–245-mm wrists
  • Height: 42 mm
  • Width: 36 mm
  • Depth: 9.7 mm
  • 374 by 446 pixels
  • 989-sq-mm display area
  • Weight (aluminium, GPS): 30 grams
  • Weight (aluminium, GPS) + Cellular: 29.3 grams
  • Weight (titanium): 34.4 grams
  • Fits 130–200-mm wrists
Hardware and Buttons

Display

Digital Crown

Microphone with Voice Isolation

Side button

Band release button

Electrical heart sensor

Speaker/air vent

Blood oxygen sensor and optical heart sensor

Band release button

Controls
  • Digital Crown with haptic feedback
  • Side button
  • Double tap gesture
  • Siri with on‑device processing
Chip
  • S10 SiP with 64‑bit dual core processor
  • 4‑core Neural Engine
  • 64GB capacity
Sensors
  • Electrical heart sensor
  • Third‑generation optical heart sensor
  • Blood oxygen sensor1
  • Temperature sensor2
  • Compass
  • Always‑on altimeter
  • High‑g accelerometer
  • High-dynamic-range gyroscope
  • Ambient light sensor
  • Depth gauge
  • Water temperature sensor
Health and Wellness
  • ECG app3
  • Cycle Tracking app with retrospective ovulation estimates4
  • Heart Rate app
  • High- and low-heart-rate notifications
  • Irregular rhythm notifications5
  • Medications app
  • Mindfulness app with state-of-mind tracking
  • Noise app
  • Sleep app, including sleep stages
Display
  • LTPO3 OLED Always-On Retina display
  • Wide‑angle OLED
  • Up to 40% brighter when viewed at an angle
  • Edge‑to‑edge display
  • Ion‑X front glass (aluminium cases)
  • Sapphire front crystal (titanium cases)
  • Up to 2,000 nits maximum brightness
  • 1 nit minimum brightness
  • 326 pixels per inch
Audio
  • Speaker
  • Media playback
Power and Battery Life
  • All‑day battery life, up to 18 hours of normal use6
  • Up to 36 hours in Low Power Mode6
  • Built‑in rechargeable lithium‑ion battery
  • Fast-charge–capable7
  • Up to 80% charge in about 30 minutes7
  • 15 minutes for up to 8 hours of normal use
  • 8 minutes for up to 8 hours of sleep tracking

Learn more

Operating System
  • watchOS 11
  • watchOS is the world’s most advanced wearable operating system, with apps and features designed to keep you active, healthy, safe and connected.

Learn more about watchOS 11

Workouts and Activity
Running
  • Customised interval workouts
  • Customisable Workout Views
  • Training load
  • Heart Rate Zones
  • Race Route
  • Pacer
  • Stride length, ground contact time and vertical oscillation
  • Automatic track detection
  • Multisport workout

Hiking
  • Compass with bearing, incline, elevation and coordinates
  • Customised waypoints
  • Automatically generated waypoints to mobile connectivity
  • Backtrack GPS data
  • Offline maps with customised route creation

Cycling
  • Average speed, elevation gained and distance
  • Connection to cycling accessories via Bluetooth®
  • Functional Threshold Power
  • Power Zones
  • Cadence
  • Live Activity on iPhone

Swimming
  • Pool swim or open-water swim
  • Customised workouts for pool swims
  • Splits and auto sets
  • SWOLF score
  • Automatic stroke detection
  • Kickboard detection
  • Average pace, total distance and laps

More Workouts
Safety
  • Emergency SOS8
  • International emergency calling9
  • Crash Detection8
  • Fall Detection
  • Noise monitoring
  • Backtrack
Durability
  • Water resistance to 50 m (swim-proof)10
  • Dust resistance IP6X11
Connectivity
  • L1 GPS, GLONASS, Galileo, QZSS and BeiDou
  • 4G LTE and UMTS12
  • Wi-Fi 4 (802.11n)
  • Bluetooth 5.3
  • Second-generation Ultra Wideband chip13
  • Apple Pay
  • GymKit
  • Support for Apple Watch For Your Kids14
Accessibility

Built‑in accessibility features supporting vision, mobility, hearing and cognitive disabilities.

Learn more

Features include:
  • VoiceOver
  • Zoom
  • On/Off Labels
  • Reduce Transparency
  • Increase Contrast
  • Colour Filters
  • Text Size
  • Bold Text
  • Reduce Motion
  • Hourly Chimes
  • AssistiveTouch
  • Button Click Speed
  • Touch Accommodations
  • Auto-Answer Calls
  • Type to Siri
  • RTT Support
  • Audio Volume Balance
  • Auto Transcription
  • Live Speech
  • Accessibility Shortcut
  • Mono Audio
  • Taptic Time
  • Personal Voice
Environmental Requirements
Operating temperature:

0° to 35° C (32° to 95° F)

Nonoperating storage temperature:

–20° to 45° C (−4° to 113° F)

Relative humidity:

5% to 90% noncondensing

Operating altitude:

0 m to 3,000 m (0 feet to 10,000 feet)

Apple Watch Series 10 and the Environment

Apple Watch Series 10 is designed to reduce environmental impact:15

See the Apple Watch Series 10 Product Environmental Report (PDF)

Progress towards Apple 2030

Apple Watch Series 10 is one of Apple’s carbon-neutral products16

  • More than 30 per cent recycled or renewable content17
  • 100 per cent of manufacturing electricity sourced from renewable electricity18
  • 50 per cent or more non-air shipping19
  • More than 80 per cent emissions reduction against baseline20
  • 8.4kg CO2e total remaining emissions covered by high‑quality carbon credits21

See Apple’s commitment

Materials

  • 100 per cent recycled aluminium in the case
  • 95 per cent recycled titanium in the case
  • 100 per cent recycled cobalt in the battery22
  • 100 per cent recycled gold in the plating of multiple printed circuit boards
  • 100 per cent recycled tin in the solder of all Apple-designed printed circuit boards
  • 100 per cent recycled tungsten and copper wire in the Taptic Engine
  • 100 per cent recycled rare earth elements in all magnets
  • 80 per cent recycled steel in the speaker yoke and Taptic Engine
  • 25 per cent renewable plastic component in the speaker
  • 100 per cent fibre‑based packaging23
  • 30 per cent recycled content in fibre packaging

Energy

  • 100 per cent of manufacturing electricity Apple Watch Series 10 is sourced from clean electricity
  • 100 per cent of expected customer energy use matched with low‑carbon energy24
  • Meets California Energy Commission’s energy efficiency standards for battery charger systems25

Waste

  • No established final assembly sites generate waste sent to landfill as part of Apple’s Zero Waste Program

Smarter chemistry26

  • Arsenic-free display glass
  • Mercury-, BFR- and PVC‑free

Apple Trade In

Trade in your eligible device and get credit towards your next purchase, or an Apple Gift Card you can use at any time.27 If your device isn’t eligible for credit, we’ll recycle it for free.

See how it works

Compatibility

iPhone Xs or later, including iPhone SE (2nd generation or later), with iOS 18 or later

In the Box
  • Apple Watch Series 10
  • Band
  • Apple Watch Magnetic Fast Charger to USB-C Cable (1m)

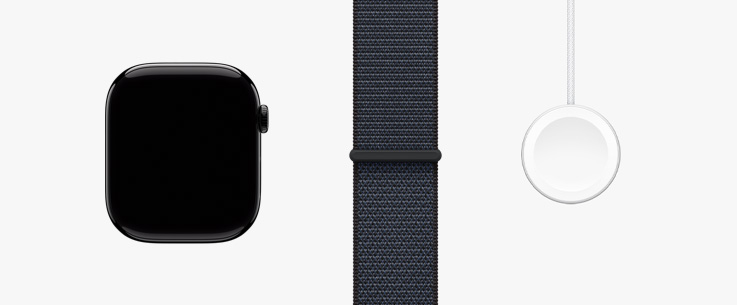

Lined up in a row: front view of Apple Watch Series 10 hardware, an Ink Sport Loop band, and Magnetic Fast Charger to USB-C Cable.
