Studio Display - Technical Specifications

Studio Display
Display

5K Retina display

  • 27-inch (diagonal) 5K Retina display
  • 5120-by-2880 resolution at 218 pixels per inch
  • 600 nits brightness
  • 60Hz refresh rate
  • Support for 1 billion colours
  • Wide colour (P3)
  • True Tone technology

Configurable with:

  • Nano-texture glass
Reference Modes

Available reference modes:

  • Apple Display (P3-600 nits)
  • HDTV Video (BT.709-BT.1886)
  • NTSC Video (BT.601 SMPTE-C)
  • PAL and SECAM Video (BT.601 EBU)
  • Digital Cinema (P3-DCI)
  • Digital Cinema (P3-D65)
  • Design and Print (P3-D50)
  • Photography (P3-D65)
  • Internet and Web (sRGB)
Camera
  • 12MP Center Stage camera with Desk View
Audio
  • High-fidelity six-speaker system with force-cancelling woofers
  • Wide stereo sound
  • Support for Spatial Audio when playing music or video with Dolby Atmos
  • Studio-quality three-mic array with high signal-to-noise ratio and directional beamforming
  • Support for “Hey Siri”
Connections

Two Thunderbolt 5 ports (up to 120 Gbs) and two USB-C ports (up to 10 Gbs)

  • One upstream Thunderbolt 5 port for host (with 96W host charging)
  • One downstream Thunderbolt 5 port for connecting high-speed accessories or daisy-chaining additional displays
  • Two USB-C ports (up to 10 Gbps) for connecting peripherals, storage and networking
  • USB-C
  • Thunderbolt 5
Back view of Studio Display, showing two USB-C ports and two Thunderbolt 5 ports
Stand
  • Tilt-adjustable stand
  • Tilt: −5° to +25°
  • Orientation: Landscape

Configurable with:

  • Tilt- and height-adjustable stand
  • Tilt: −5° to +25°
  • Height adjustment: Total of 105 mm
  • Orientation: Landscape

VESA mount adapter

  • Compatible with 100-by-100-mm VESA stand
  • Orientation: Landscape or portrait
Size and Weight

Studio Display with tilt-adjustable stand

Height: 47.8 cm (18.8 inches)

Width: 62.3 cm (24.5 inches)

Depth: 16.8 cm (6.6 inches)

Weight: 6.3 kg (13.9 pounds)1

Side view of Studio Display with tilt-adjustable stand, showing height and depth measurements Back view of Studio Display with tilt-adjustable stand, showing width measurement Stand depth:
16.8 cm (6.6 inches)
Height:
47.8 cm (18.8 inches)
Width:
62.3 cm (24.5 inches)

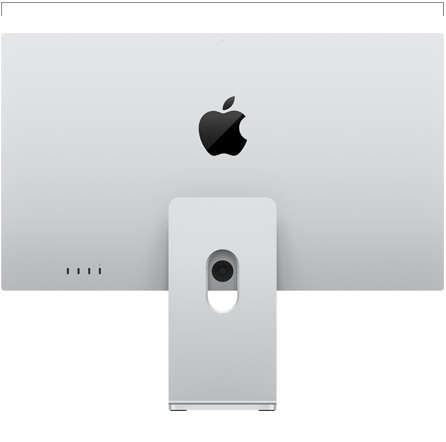

Studio Display with tilt- and height-adjustable stand

Height (bottom position): 47.9 cm (18.8 inches)

Width: 62.3 cm (24.5 inches)

Height (top position): 58.3 cm (23.07 inches)

Weight: 7.6 kg (16.8 pounds)1

Depth: 20.7 cm (8.1 inches)

Side view of Studio Display with tilt- and height-adjustable stand, showing height of display at bottom position Back view of Studio Display with tilt- and height-adjustable stand, showing width measurement Side view of Studio Display XDR with tilt- and height-adjustable stand, showing height of display at top position Stand depth:
20.7 cm (8.1 inches)
Height, bottom position:
47.9 cm (18.8 inches)
Width:
62.3 cm (24.5 inches)
Height, top position:
58.3 cm (23.07 inches)
Stand depth:
20.7 cm (8.1 inches)

Studio Display with VESA mount adapter

Height: 36.2 cm (14.3 inches)

Width: 62.3 cm (24.5 inches)

Depth: 3.1 cm (1.2 inches)

Weight: 5.4 kg (11.9 pounds)1

Side view of Studio Display with VESA mount adapter, showing height and depth measurements Back view of Studio Display with VESA mount adapter, showing width measurement Stand depth:
3.1 cm (1.2 inches)
Height:
36.2 cm (14.3 inches)
Width:
62.3 cm (24.5 inches)
Compatibility

Studio Display is compatible with the following Mac models with Apple silicon and macOS Tahoe 26.3.1 or later:

  • 16-inch MacBook Pro (2021 and later)
  • 14-inch MacBook Pro (2021 and later)
  • 13-inch MacBook Pro (M1, 2020 and later)
  • 15-inch MacBook Air (2023 and later)
  • 13-inch MacBook Air (M1, 2020 and later)
  • Mac Studio (2022 and later)
  • Mac mini (2020 and later)
  • Mac Pro (2023 and later)
  • 24-inch iMac (2021 and later)

Studio Display is compatible with the following iPad models with iPadOS 26.3.1 or later:2

  • iPad Pro (M4 and M5)
  • iPad Pro 12.9-inch (3rd–6th generation)
  • iPad Pro 11-inch (1st–4th generation)
  • iPad Air (M2, M3, and M4)
  • iPad Air (5th generation)
In the Box
  • Studio Display
  • Thunderbolt 5 Pro cable (1 m)
Studio Display and Thunderbolt 5 Pro cable
Electrical and Operating Requirements
  • Line voltage: 100–240V AC
  • Frequency: 50Hz to 60Hz, single phase
  • Operating temperature: 10° to 35° C (50° to 95° F)
  • Relative humidity: 5% to 90% noncondensing
  • Maximum altitude: Tested up to 5,000 metres (16,400 feet)
Configure to Order
  • Configure your Studio Display with these options at apple.com/au:
  • Nano-texture glass
  • Tilt- and height-adjustable stand
  • VESA mount adapter

Studio Display and the Environment

Studio Display is designed to reduce environmental impact3:

Progress towards Apple 2030

  • Apple 2030 is our commitment to be carbon neutral for our entire carbon footprint. Our plan to decarbonise products is rigorous and focuses on transitioning to low-carbon electricity, designing with recycled and low-carbon materials, and prioritising lower-carbon ways of shipping products, like ocean freight.
See Apple’s commitment

Materials

  • 100% recycled aluminium in the stand
  • 100% recycled copper in multiple printed circuit boards
  • 100% recycled copper and zinc in the AC inlet prongs
  • 80% recycled glass in the standard glass
  • 100% recycled gold plating and tin solder in all Apple-designed printed circuit boards
  • 100% recycled rare earth elements in all magnets

Energy

ENERGY STAR®–certified4

Packaging

  • 100% fibre-based packaging5

Waste

  • No established final assembly sites generate waste sent to landfill as part of Apple’s Zero Waste Program6

Smarter chemistry7

All of the materials used in Apple products, accessories and packaging are covered by the requirements of our Regulated Substances Specification(PDF) opens in new tab, which was one of the first in industry to restrict the use of key substances of concern. See the latest Environmental Progress Report(PDF) opens in new tab to understand Apple’s recent efforts in phasing out these chemistries.
