Technical Specifications

Processor

Configure from an 8‑core to 28‑core Intel Xeon W processor

8-Core

3.5GHz Intel Xeon W

8 cores, 16 threads

Turbo Boost up to 4.0GHz

24.5MB cache

Supports 2666MHz memory

12-Core

3.3GHz Intel Xeon W

12 cores, 24 threads

Turbo Boost up to 4.4GHz

31.25MB cache

Supports 2933MHz memory

16-Core

3.2GHz Intel Xeon W

16 cores, 32 threads

Turbo Boost up to 4.4GHz

38MB cache

Supports 2933MHz memory

24-Core

2.7GHz Intel Xeon W

24 cores, 48 threads

Turbo Boost up to 4.4GHz

57MB cache

Supports 2933MHz memory

28-Core

2.5GHz Intel Xeon W

28 cores, 56 threads

Turbo Boost up to 4.4GHz

66.5MB cache

Supports 2933MHz memory

Memory

Configure up to 1.5TB of DDR4 ECC memory in 12 user-accessible DIMM slots

32GB

Four 8GB DIMMs

48GB

Six 8GB DIMMs

96GB

Six 16GB DIMMs

192GB

Six 32GB DIMMs

384GB

Six 64GB DIMMs

768GB

Six 128GB DIMMs or 12 64GB DIMMs

1.5TB

12 128GB DIMMs

Requires 24-core or 28-core processor.

8-core processor operates memory at 2666MHz.

12-core to 28-core processors operate memory at 2933MHz.

Graphics

Configure two MPX Modules with up to four GPUs

AMD Radeon Pro 580X

36 compute units, 2304 stream processors

8GB of GDDR5 memory

Up to 5.6 teraflops single precision

Two HDMI 2.0 ports on card

Four DisplayPort connections routed to system to support internal Thunderbolt 3 ports

Support for up to six 4K displays, two 5K displays, or two Pro Display XDRs

Half-height MPX Module fits in an MPX bay and enables PCIe slot 2 for additional expansion

AMD Radeon Pro Vega II

64 compute units, 4096 stream processors

32GB of HBM2 memory with 1TB/s memory bandwidth

Up to 14.2 teraflops single precision or 28.4 teraflops half precision

Infinity Fabric Link connection enables two Vega II GPUs to connect at up to 84GB/s

Four Thunderbolt 3 ports and one HDMI 2.0 port on card

Two DisplayPort connections routed to system to support internal Thunderbolt 3 ports

Support for up to six 4K displays, three 5K displays, or two Pro Display XDRs

Full-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth

AMD Radeon Pro Vega II Duo

Two Vega II GPUs, each with 64 compute units and 4096 stream processors

64GB of HBM2 memory (32GB per GPU), each with 1TB/s memory bandwidth

Up to 28.4 teraflops single precision or 56.8 teraflops half precision

Onboard Infinity Fabric Link connection connects the two Vega II GPUs at up to 84GB/s

Four Thunderbolt 3 ports and one HDMI 2.0 port on card

Four DisplayPort connections routed to system to support internal Thunderbolt 3 ports

Support for up to eight 4K displays, four 5K displays, or four Pro Display XDRs

Full-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth

Power Supply


1.4 kilowatts

Maximum continuous power:

1280W at 108–125V or 220–240V

1180W at 100–107V

Expansion Slots

Eight PCI Express expansion slots

Two MPX Modules or up to four PCI Express card slots

Each MPX bay provides:

x16 gen 3 bandwidth for graphics

x8 gen 3 bandwidth for Thunderbolt

DisplayPort video routing

Up to 500W power for an MPX Module

Alternatively, each MPX bay can support:

One full-length, double-wide x16 gen 3 slot and one full-length, double-wide x8 gen 3 slot (MPX bay 1)

Or two full-length, double-wide x16 gen 3 slots (MPX bay 2)

Up to 300W auxiliary power via two 8-pin connectors

Three full-length PCI Express gen 3 slots

One x16 slot; two x8 slots

75W auxiliary power available

One half-length x4 PCI Express gen 3 slot with Apple I/O card installed

Afterburner

ProRes and ProRes RAW accelerator card

PCI Express x16 card

Accelerates ProRes and ProRes RAW codecs in Final Cut Pro X, QuickTime Player X, and supported third-party apps

Supports playback of up to 3 streams of 8K ProRes RAW or up to 12 streams of 4K ProRes RAW

Storage

Configure up to 4TB of SSD storage1

256GB SSD

One 256GB module

1TB SSD

Two 512GB modules

2TB SSD

Two 1TB modules

4TB SSD

Two 2TB modules

Up to 2.6GB/s sequential read and 2.7GB/s sequential write performance.

Storage encrypted by the Apple T2 Security Chip.

Input/Output

I/O card installed in the half-length x4 PCI Express slot with:

Two USB 3 ports

Support for USB-A (up to 5Gb/s)

Two Thunderbolt 3 ports

Support for Thunderbolt 3 (up to 40Gb/s)

Support for USB-C (up to 10Gb/s)

Support for DisplayPort

Two 10Gb Ethernet ports:

Support for 10Gb Ethernet performance over copper cabling

Support for Nbase-T industry standard: 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet link speeds using RJ-45 connectors




Additional Connections

Two Thunderbolt 3 ports on the top of the tower enclosure

Support for Thunderbolt 3 (up to 40Gb/s)

Support for USB-C (up to 10Gb/s)

Support for DisplayPort

Audio

Built-in speaker

3.5 mm headphone jack with headset support

Input Devices

Magic Keyboard with Numeric Keypad (silver and black)

Magic Mouse 2 (silver and black)

Optional Magic Trackpad 2 (silver and black)

Wireless

Wi-Fi

802.11ac Wi-Fi wireless networking

IEEE 802.11a/b/g/n compatible

Bluetooth

Bluetooth 5.0 wireless technology

Dimensions

height: 20.8 inches 52.9 cm

width: 17.7 inches
45.0 cm

height: 20.8 inches 52.9 cm

depth: 8.58 inches
21.8 cm

Height with optional wheels:

21.9 inches (55.7 cm)

Weight2

39.7 pounds (18.0 kg)

Electrical and Operating Requirements

Line voltage: 100–125V AC at 12A; 220–240V AC at 6A

Frequency: 50Hz to 60Hz, single phase

Operating temperature: 50° to 95° F (10° to 35° C)

Storage temperature: –40° to 116° F (–40° to 47° C)

Relative humidity: 5% to 95% noncondensing

Maximum altitude: tested up to 16,400 feet (5000 meters)

Limited Warranty and Service

Your Mac Pro comes with 90 days of complimentary technical support and a one-year limited warranty. Purchase AppleCare+ for Mac to extend your coverage to three years from your AppleCare+ purchase date and add up to two incidents of accidental damage coverage, each subject to a service fee of $99 for external enclosure damage, or $299 for other repairable damage, plus applicable tax.

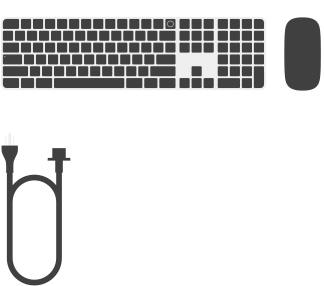

In the Box

Mac Pro

Magic Keyboard with Numeric Keypad

Magic Mouse 2

USB-C to Lightning Cable (1 m)

Power cord (2 m)

Operating System

macOS

macOS is the operating system that powers everything you do on a Mac. macOS Mojave brings new features inspired by its most powerful users but designed for everyone. So you can get more out of every click.

Learn more about macOS Mojave

Accessibility
Learn more about accessibility

Features include:

  • VoiceOver
  • Zoom
  • Increase Contrast
  • Reduce Motion
  • Siri and Dictation
  • Switch Control
  • Closed Captions
  • Text to Speech
Built-in Apps3
Photos
iMovie
GarageBand
Pages
Numbers
Keynote
Siri
Safari
Mail
FaceTime
Messages
Maps
News
Stocks
Home
Voice Memos
Notes
Calendar
Contacts
Reminders
Photo Booth
Preview
iTunes
Books
App Store
Time Machine
Kits and Accessories

Mac Software

Graphics and Displays

  • Radeon Pro Vega II MPX Module Kit
  • Radeon Pro Vega II Duo MPX Module Kit
  • Afterburner Kit
  • Pro Display XDR
  • Pro Stand
  • VESA Mount Adapter

Memory

  • Apple 8GB DDR4 Memory Kit
  • Apple 16GB DDR4 Memory Kit
  • Apple 32GB DDR4 Memory Kit
  • Apple 64GB DDR4 Memory Kit

Storage

  • Promise Pegasus R4i 32TB RAID MPX Module Kit
  • Promise Pegasus J2i

Other Accessories

  • Apple Mac Pro Wheel Kit
  • Apple Thunderbolt 3 Pro Cable (2 m)
  • Apple Thunderbolt 3 Pro Cable (3 m)
  • Apple USB-C to Lightning Pro Cable (1 m)
  • Belkin Lock Adapter for Mac Pro
  • Belkin AUX Power Cable Kit for Mac Pro
  • Logitech Pro Magnetic Webcam
  • AppleCare+ for Mac

Mac Pro and the Environment

Apple takes a complete product life cycle approach to determining our environmental impact. Learn moreabout Mac Pro and environment

Mac Pro is designed with the following features to reduce its environmental impact:

  • Made with better materials
  • Enclosure made with low-carbon aluminum
  • Responsible packaging
  • Recyclable, majority-fiber packaging
  • 100% of primary wood fiber comes from responsibly managed forests
  • Smarter chemistry
  • BFR-, PVC-, and beryllium-free
